Cyclo Arc™

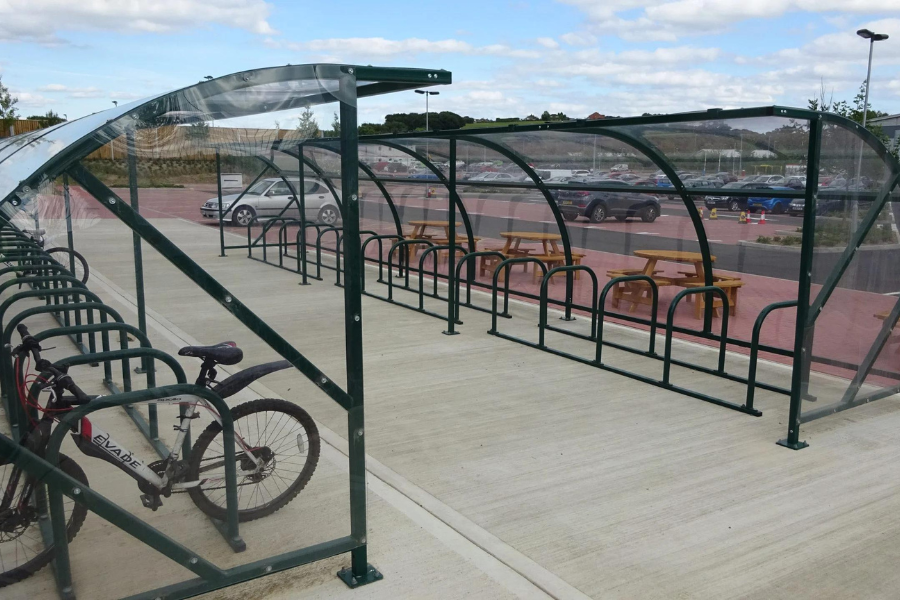

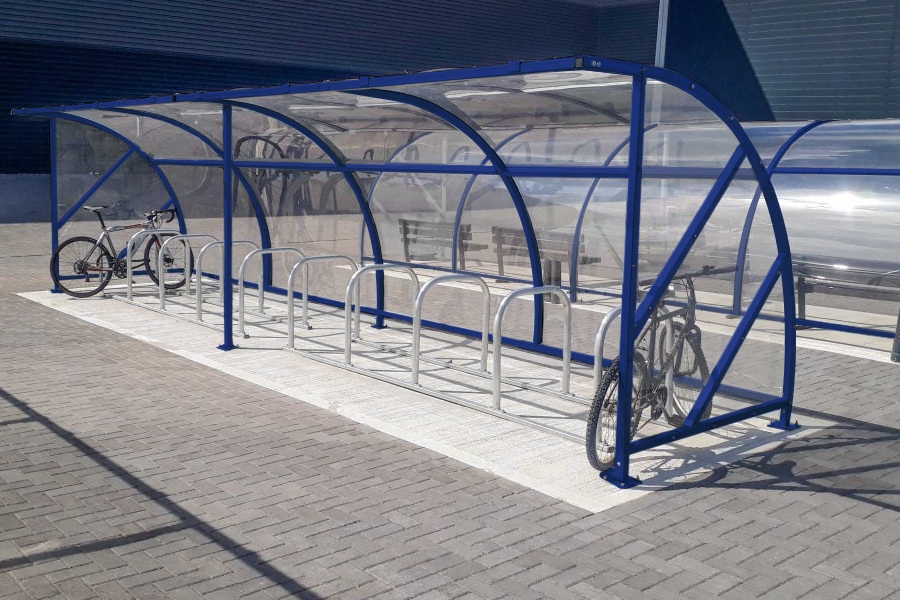

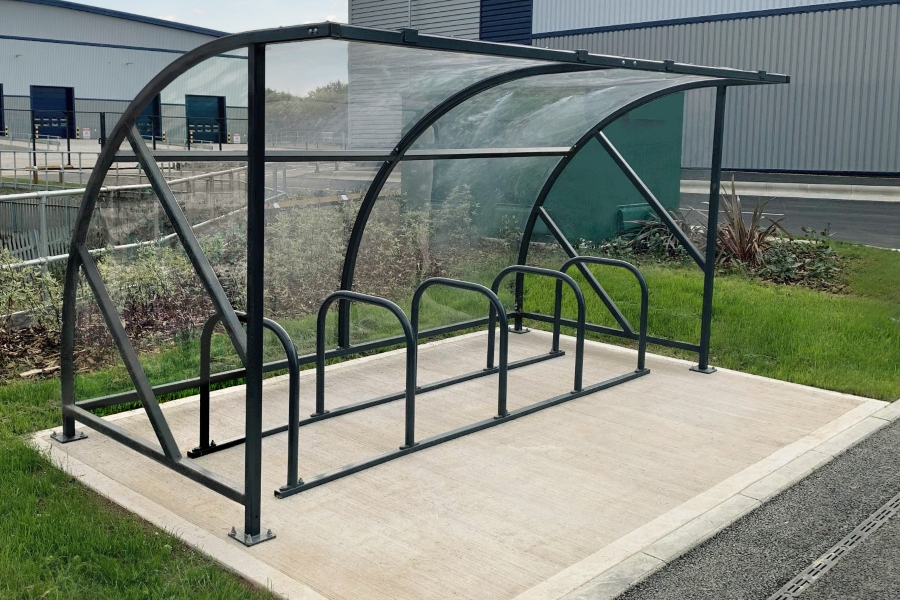

This popular cycle store offers a durable, economical cycle storage solution; available in multiple size options and configurations to support your capacity requirements, our Cycle Arc™ features a sturdy galvanised and powder-coated steel frame and shock-proof PETg roof. Optional side panels and gates complete the setup.
- Curved roof design
- Solid steel framework
- PETg roofing
- Finished in Dura-coat™ finish
- Side panel and gate options
Specification
MATERIALS
Structure – All steel
Roofing – PETg Cladding
Finish – Galvanised only or Dura-coat™ colour finish
DIMENSIONS
Standard lengths are 2000mm (4 cycles), and 4100mm (10 cycles) etc. Allow 1800 between opposing units. In all instances please enquire – we can accommodate nearly any situation.
OPTIONS
– Covered walkway between opposing units
– Side panels /Gates
– Personalised engraving onto the PETg roof
– Pre-galvanised steel sheet roof
SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Cyclo Arc™ to overall size —- mm X —- mm (or as per plan no——-) to include for clear roof, Toast rack style cycle stands to accommodate —— cycles all in Dura-coat™ finish to RAL—— as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE T:01743 444100 E:[email protected]
Appearance
Steelwork is finished in galvanised only or Dura-coat™ colour finish to any RAL colour (the cycle rack will remain in galvanised finish unless specified otherwise). The PETg cladded roof is clear as standard, or can be manufactured using galvanised steel sheeting by special request.
Services
A&S Landscape recommends early consultation to consider all aspects of the proposed installation. We provide free quotations and technical information at the design stage with drawing files of all details which can be easily incorporated into architects’ drawings. Full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement can often improve design, aesthetics and cost.
BESPOKE PRODUCTS
Our ability to extensively customise our products ensures that we can meet any special requirements that you may have. Our flexible modular system often allows this to be done very economically whilst retaining the performance characteristics of our system.
Standard Cyclo Arc Colours
Grey Aluminium
- RAL NO. 9007
White Aluminium
- RAL NO. 9006
Traffic White
- RAL NO. 9016
Pure White
- RAL NO. 9010
Grey Brown
- RAL NO. 8019
Light Grey
- RAL NO. 7035
Graphite Grey
- RAL NO. 7024
Basalt Grey
- RAL NO. 7012
Fir Green
- RAL NO. 6009
Olive Green
- RAL NO. 6003
Leaf Green
- RAL NO. 6002
Traffic Blue
- RAL NO. 5017
Sky Blue
- RAL NO. 5015
Signal Blue
- RAL NO. 5005
Sapphire Blue
- RAL NO. 5003
Flame Red
- RAL NO. 3000
Colza Yellow
- RAL NO. 1021
Anthracite Grey
- RAL NO. 7016
Traffic Red
- RAL NO. 3020
Ultramarine Blue
- RAL NO. 5002
Gentian Blue
- RAL NO. 5010
Slate Grey
- RAL NO. 7015
Moss Green
- RAL NO. 6005
Jet Black
- RAL NO. 9005
Accreditations
Get in touch to request a copy of our full, 160 page, hardback brochure with all the information you need to make the right choice.
