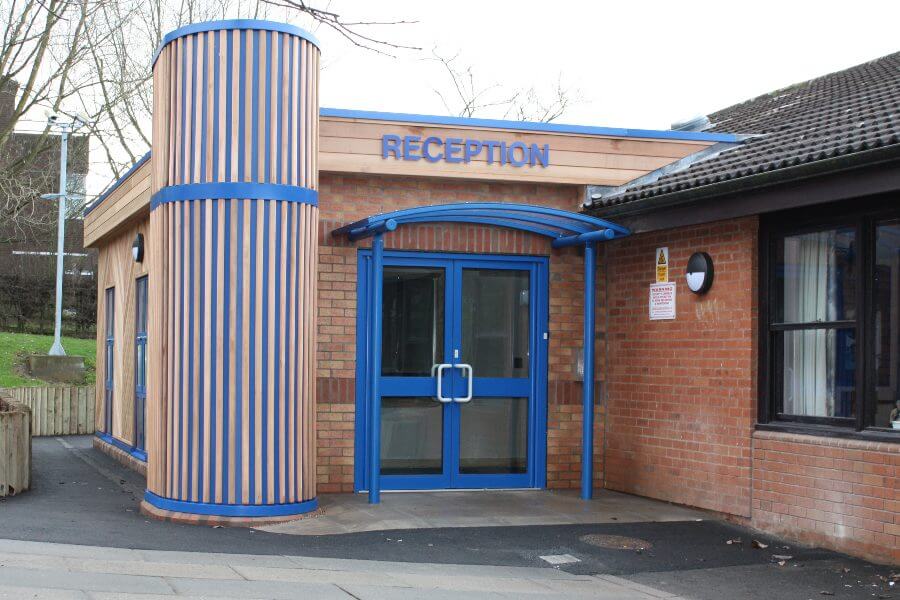

Randlay Primary School Polycarbonate Entrance Canopy

Burlish Park Primary School Entrance Canopy

Motiva Entro™

Download specification

The ‘Entro’ is the Motiva entrance canopy. This would normally be in duopitch configuration. Freestanding, wall fixed and partial wall fixed units are all possibilities. Widths of 10000mm are easily achieved and wider still with additional design features. This is the entrance canopy to make the perfect first impression when someone arrives.

Symmetric curved roof design
Solid steel framework
Genuine polycarbonate roofing
Finished in Dura-coat™ finish
Manufactured to suit your entrance

View Gallery

Specification

MATERIALS
Structure – All steel
Roofing – Polycarbonate
Finish – Galvanised only or Dura-coat™ colour finish

DIMENSIONS
Virtually any size is available for the Motiva Entro™ canopy. Most cost-effective total widths for these entrance canopies are: 2000mm, 3000mm, 4000mm, 5000mm, 6000mm – Standard depths are at 700mm increments. In all instances please enquire – we can accommodate nearly any situation.

OPTIONS
– Side panels with various infill options
– Clear, opal or coloured roofing
– Aluminium guttering and downpipes
– Wall brackets
– Wide span beams
– CHS uprights
– Post pads

SPECIFICATION CLAUSE
To supply and install to manufacturer’s recommendations: Motiva Entro™ canopy to overall size —- mm X —- mm (or as per drawing no——-) to include for clear/opal/coloured roof, Alu-Tuff™ gutters and downpipes all in Dura-coat™ finish to RAL——- as manufactured by A&S Landscape, March Way, Battlefield Enterprise Park, Shrewsbury, SY1 3JE T:01743 444100 E:[email protected]

Appearance

Steelwork on the Motiva Entro™ canopy is finished in Dura-coat™ colour finish to any RAL colour. The aluminium gutters and downpipes are also finished to match. Polycarbonate roof covering can either be clear or opal as standard.

Services

A&S Landscape’s team recommend early consultation in order to consider all aspects of the proposed entrance canopy installation. The team will provide free quotations and technical information at the design stage. Drawing files of all details will also be supplied which can be easily incorporated into architects’ drawings. Full site surveys, CAD drawings and project management are all part of our standard service. Early technical involvement can generally provide a better solution.

BESPOKE PRODUCTS
Our ability to extensively customise our products ensures that we can meet any special requirements that customers may have for bespoke products. Our modular system often allows this to be done very economically whilst retaining the performance characteristics of our system.
