Rapid Deployment Canopy System

Canopy systems for rapid deployment from stock. No groundworks necessary. Move or reuse multiple times. Fast install. Teams available. Hire or buy. Add sides, fencing, signage. Phone 01743 444100 to discuss your requirements.

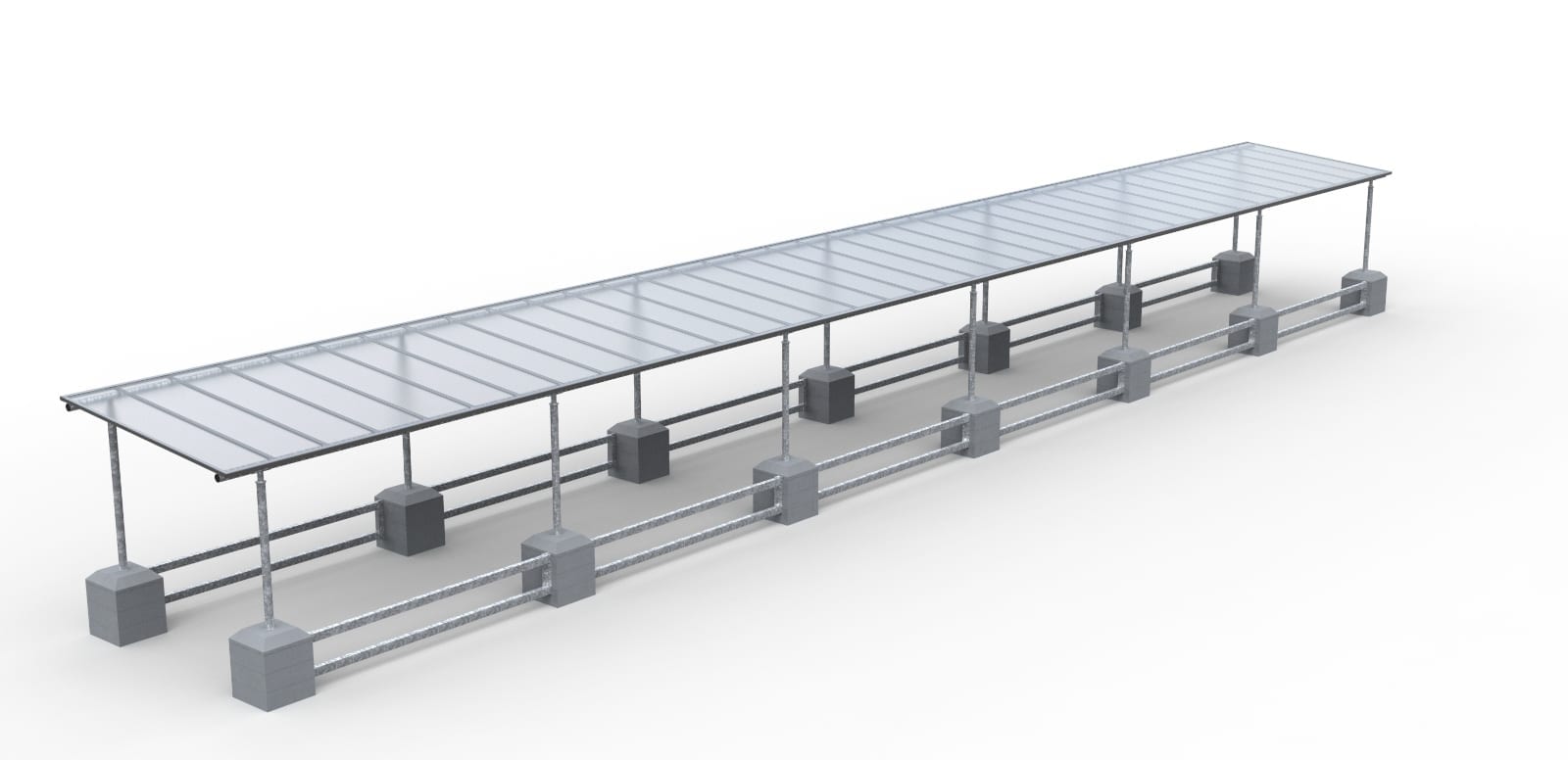

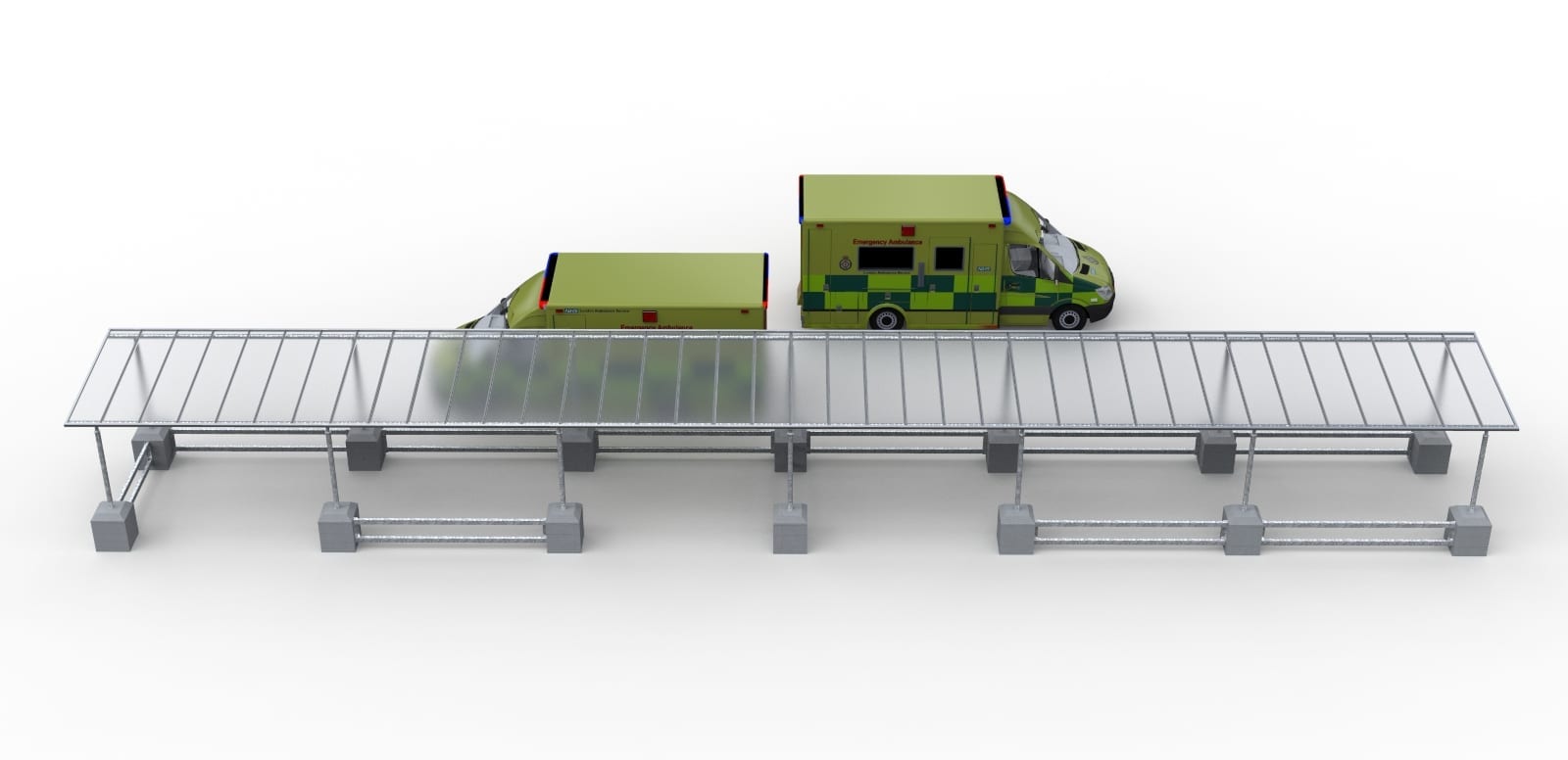

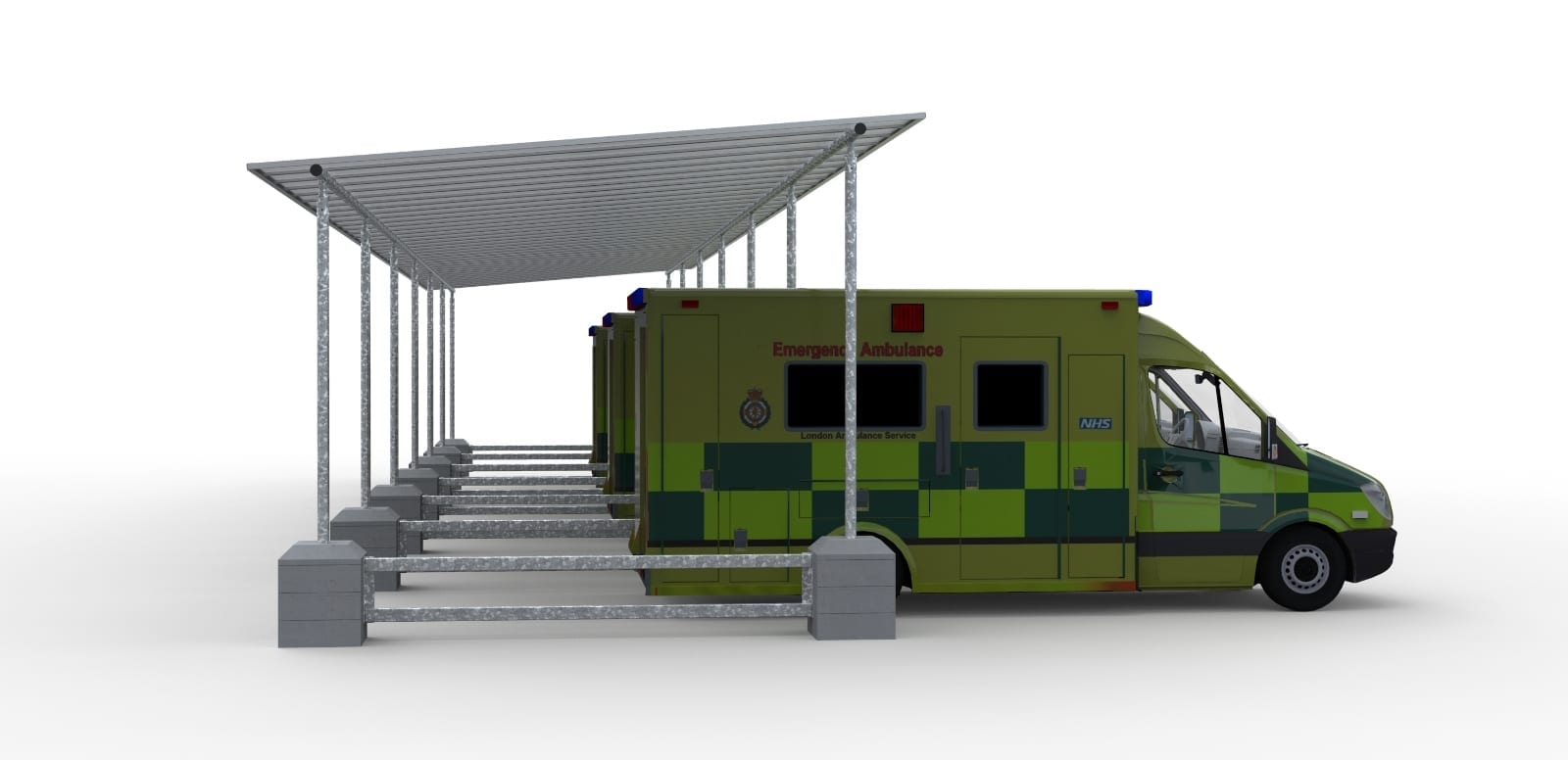

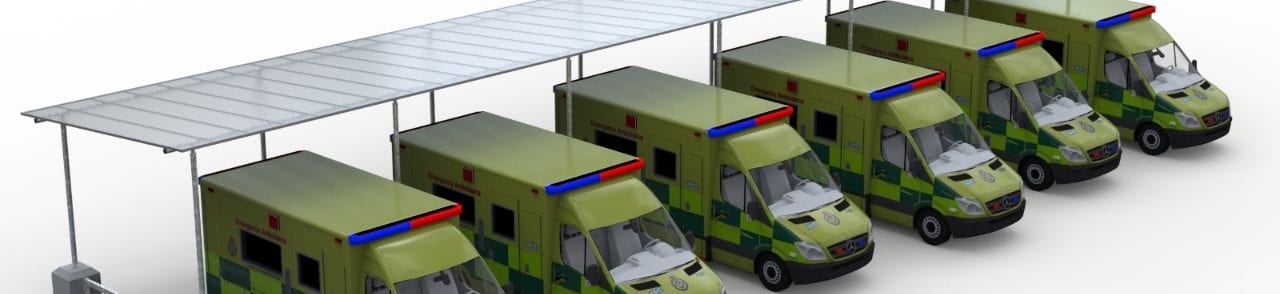

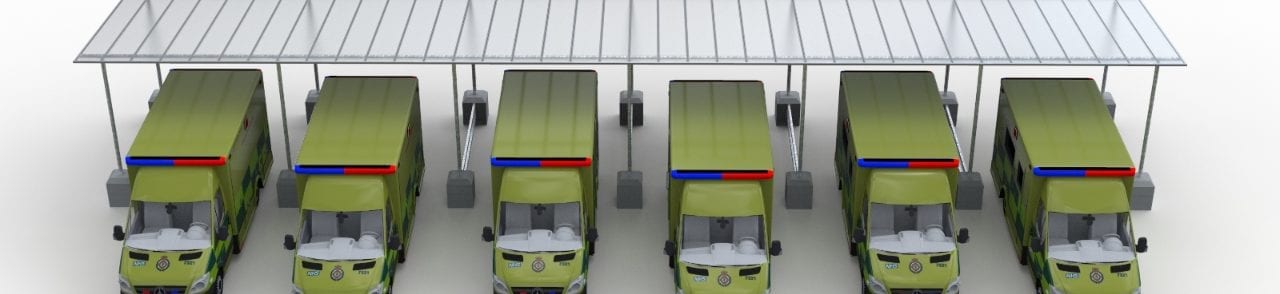

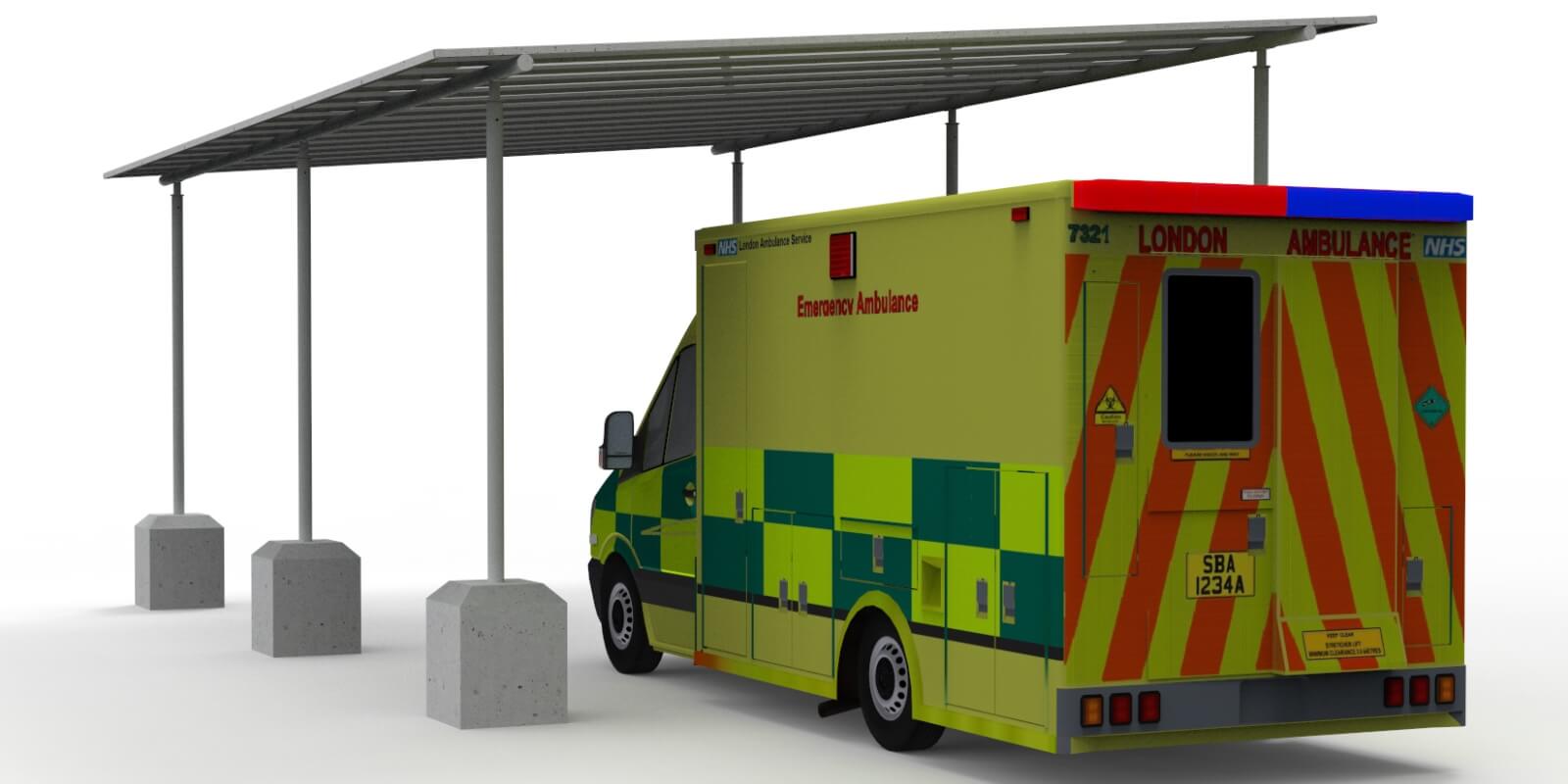

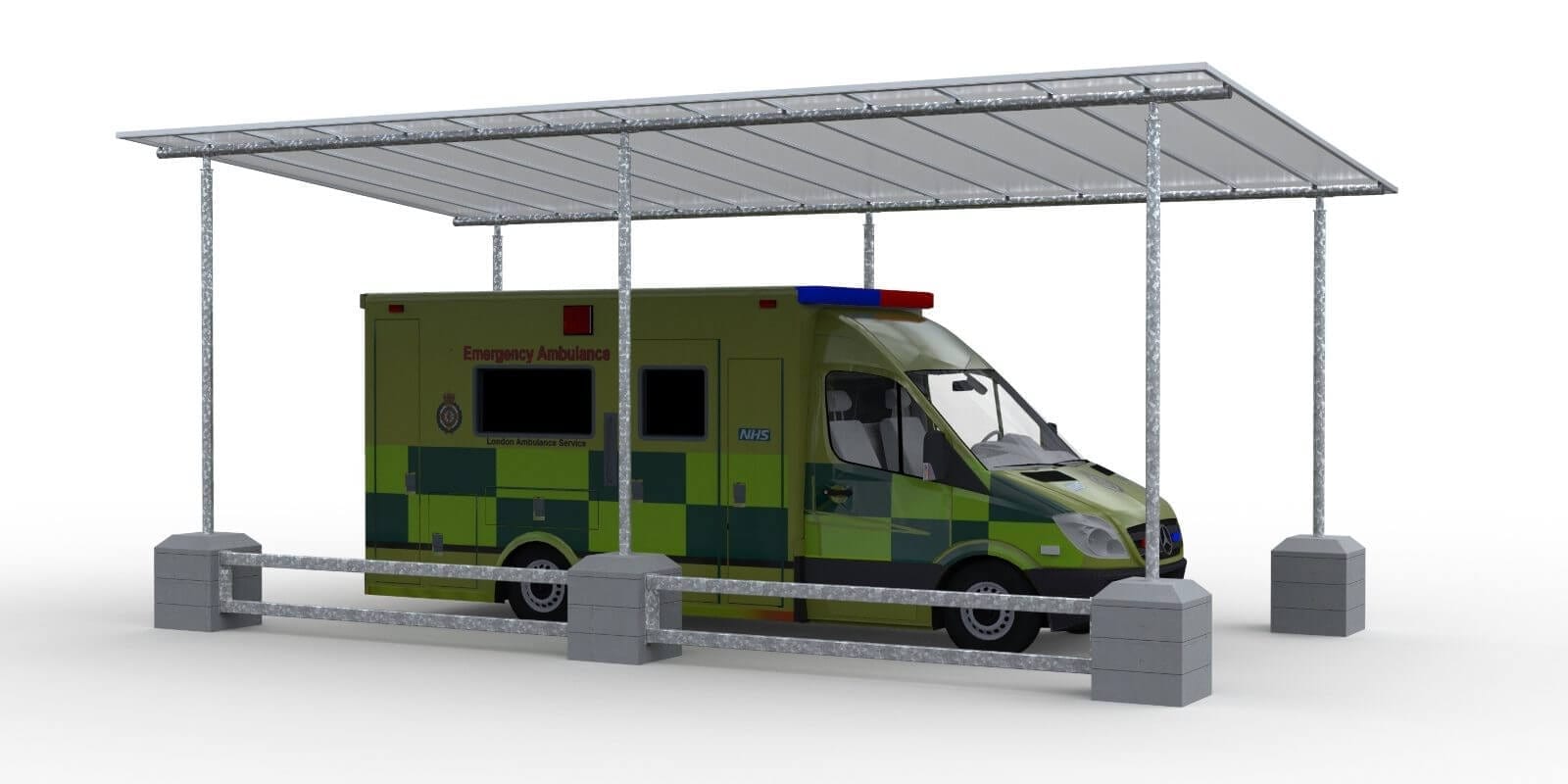

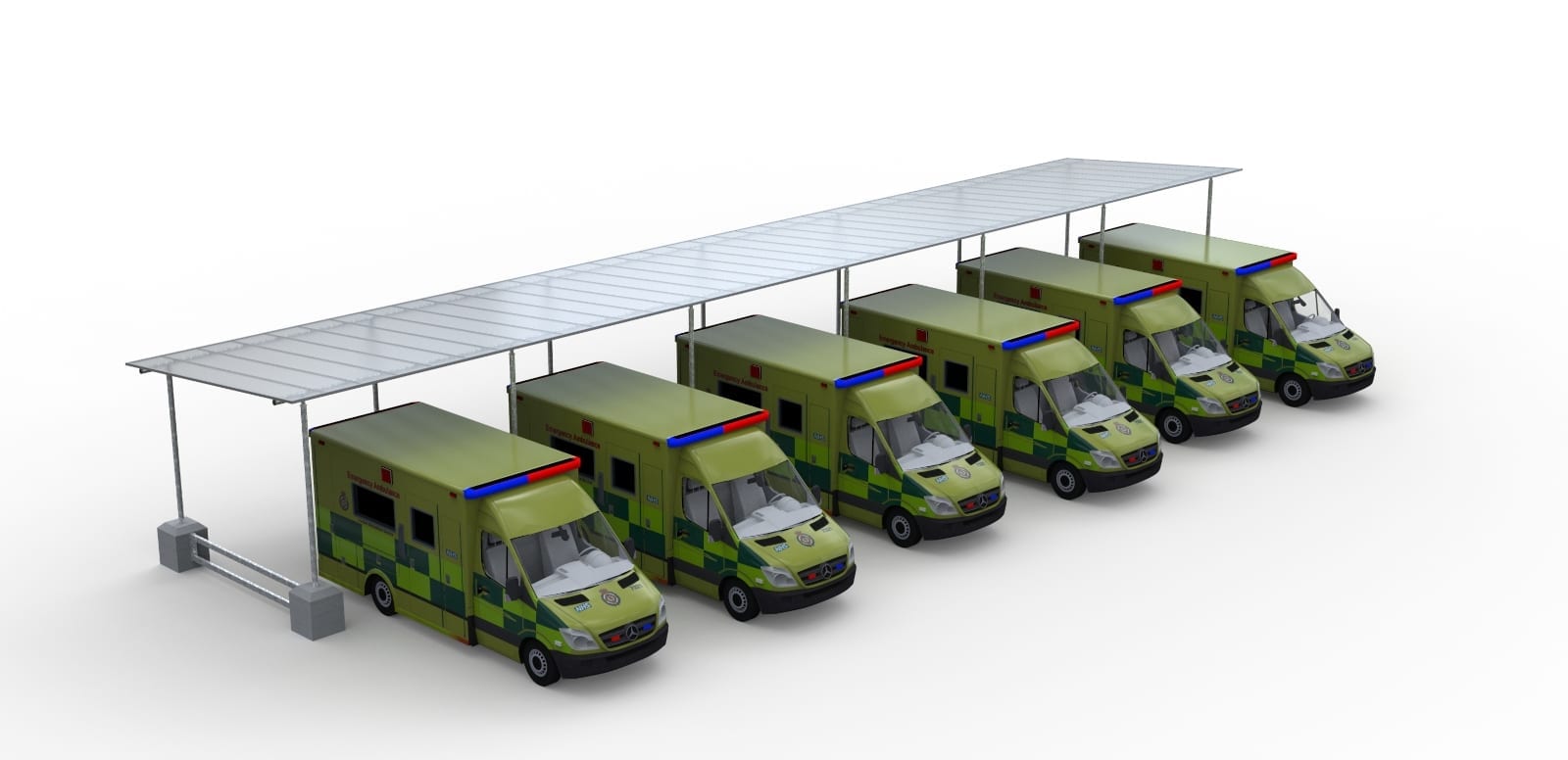

Designed for rapid deployment across various sectors including emergency services, healthcare, warehousing and others. The System 60 canopy with its modular components and flexible design is a canopy system of unrivalled speed and simplicity.

Uprights slide over the foot, (roof fixed or concrete weight mounted) the collar and rafter supports slide into the upright, the horizontals drop into place before System 60 glazing channels are secured to the horizontals and the polycarbonate sheets, with their unique groove edge, simply snap down into place. The perimeter of the glazing is capped with durable finishing profiles. This unique modular design leaves the polycarbonate surface smooth, free from unsightly glazing bar caps and mechanical fixings.

  • Rapid on-site set-up
  • Complete design layout service
  • Made to measure or ‘cut on-site’
  • Installation or self-assembly
  • Buy or hire
  • Adapt or move to suit the needs
  • Large stocks
  • Available immediately

Find Out How the System 60 is Installed

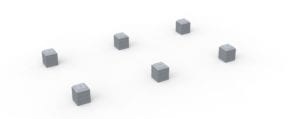

1.Position bases

Position Bases

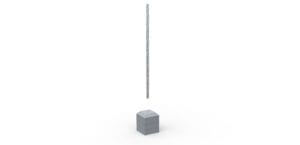

2. Slide in uprights



Slide in uprights













3. Complete uprights

Complete uprights













4. Slot on top brackets

Slot on top brackets













5. Affix horizontals

Fix horizontals

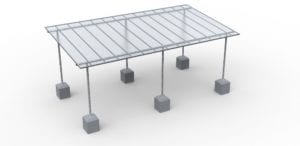

6. Fit roof

Fix roof

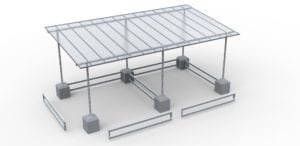

7. Add optional extras

Optional extras











Key Features:

  • Galvanised and/or PPC steel frame
  • Provides areas of safe shading – filters 98% of harmful UV rays
  • Good insulation – thermal transmittance (U-value) of 2.2W/m2K
  • Choice of clear and opal finishes or seven attractive sheet colours
  • Fully recyclable components with minimal environmental impact
  • Glazing manufactured to UNI EN ISO 9001:2008 quality standard
  • High impact resistance achieved with tests simulating hail and falling objects
  • Noise reduction: 20 dB (DIN 52210 75 Rw)
  • Light transmission Clear: 60 % Opal: 40%
  • Solar Factor (G-value): Clear – 0.69 Opal – 0.55
  • Fire classification: Euroclass – EN13501-1 2006 B-s1, d0 (as UK Class 0)
  • Warranty period: 10-year limited warranty covering discolouration and hailstone damage

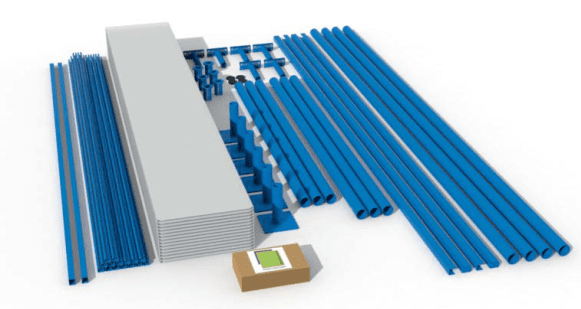

Canopy Parts
